Rosbot Pro

Rosbot Pro is an ideal platform for Autonomous Mobile Robot (AMR) projects. With built-in ROS controller, LiDAR and Depth Camera, Rosbot Pro saves time and money for rapid prototyping or product development. Its battery life can go up to 4.5 hours with no load or 3 hours with full load. This is a serious professional AMR platform to be integrated with field robots and service robots both for indoor or outdoor environment. It can carry up to 20 kg payload and climb up to 30 degree slope.

Rosbot Pro comes with revolutionary Power Management Units including Power Mag and Auto Charge. Power Mag is a magnetic LFP battery allows quick and easy battery swaps. Rosbot Pro S takes it further, integrating Auto Charge, the automatic charging solution.

Both Rosbot Pro and Rosbot Pro S come pre-loaded with MiROS, a cloud-based ROS DevKit with a user-friendly graphical interface. They also include free tutorials, supported by a global ROS community.

Rosbot Pro is one of the most agile AMR platforms that can carry out big jobs at low cost.

Key Features

• Ideal for Autonomous Mobile Robot (AMR) projects.

• ROS Controllers - Jetson Orin Nano/NX

• Built-in LS LiDAR and Orbbec Depth Camera

• Remote controlled mobile app

• Power Mag - quick and easy battery swaps

• Auto Charge - auto charging solution

• Battery life 3 ~ 4.5 hours.

• Pre-installed ROS 2 Humble and MiROS

Product Models:

• Rosbot Pro - Orin Nano

• Rosbot Pro AC - Orin Nano (Auto Charge & )

• Rosbot Pro HD - Orin Nano (Heavy Duty)

• Rosbot Pro TS - Orin Nano (Touch Screen)

• Rosbot Pro - Orin NX

• Rosbot Pro AC - Orin NX (Auto Charge)

• Rosbot Pro HD - Orin NX (Heavy Duty)

• Rosbot Pro TS - Orin NX (Touch Screen)

*All AC, HD, TS models come with a Radio Remote Control.

Dimensions

Size: Length - 76.6 cm, Width - 67.1 cm, Height - 31.9 cm

Weight: 19.54kg

Specifications

• ROS Controller - Jetson Orin Nano/NX

• Orbbec Depth Camera

• LS LiDAR

• Solid Rubber Wheels - 180mm diameter

• Power Supply:

  • 24V 6000mAh LFP battery

  • 3A DC Charger

  • 4.5 hours battery life (without loading)

  • 3 hours battery life (with 3kg loading)

• Motor Specifications:

  • MD36 100W DC Brushed Motor

  • 1:18 Reduction Ratio

  • Max. Payload: 22kg

  • Max. Speed: 2.33m/s

• I/O Interfaces:

  • CAN

  • Serial Ports

  • USB

  • HDMI

What's Included

Hardware

• ROS Controller - Jetson Nano/Orin Nano/Orin NX,

• Power Mag - Magnetic LFP Battery and Battery Charger

• Orbbec Depth Camera

• LS LiDAR - M10P (30m Detection Range)

• Auto Charge (auto charging station) for Rosbot Plus S models

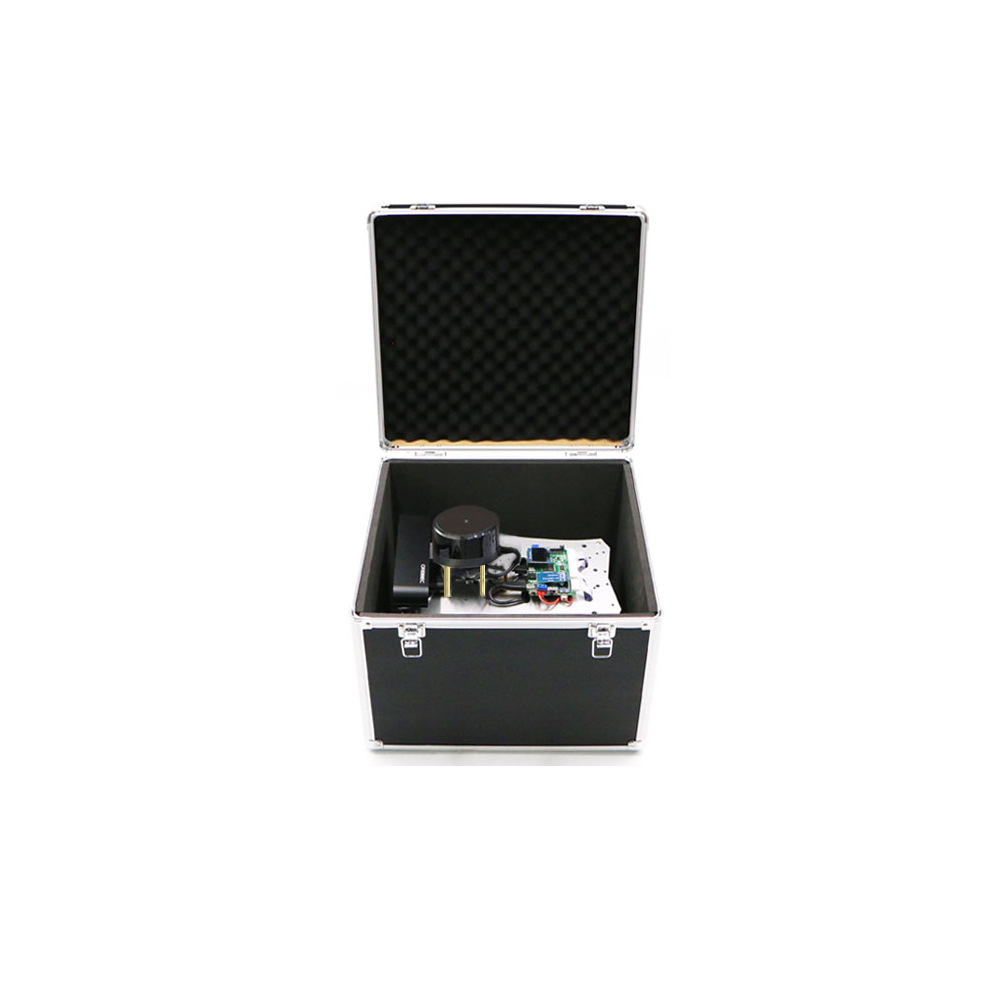

• Flight case

Software

• Ubuntu 22.04

• ROS 2 Humnble

• MiROS

• ROS Packages and Source Codes

• iOS and Android Remote Control Apps

• STP and URDF Files

What is MiROS

MiROS is a cloud-based programming tool for ROS with graphical user interface. Rosbot 2 comes preinstalled with the MiROS Agent, enabling a constant SSH connection between your computer and your robot. If you’re developing a ROS project on a Mac or PC, there’s no need to install Ubuntu or use a virtual machine. You can access the ROS environment directly through a web browser and remotely connect to your robot. The MiROS graphical interface supports drag-and-drop programming and automatically generates ROS code, saving time and reducing the risk of errors.

What is Power Mag

Power Mag is a magnetic battery that easily attaches to Rosbot 2’s metal surface, enabling quick battery swaps. Its core is powered by LFP (lithium iron phosphate) technology, which is ideal for EVs, solar energy storage, and mobile robots. LFP batteries are safer, charge faster, offer better heat resistance, and have a longer lifespan. They are also more environmentally friendly and cost-effective compared to other battery types.

What is Auto Charge

Auto Charge is an automatic charging solution for Rosbots, Mecabots, and Pickerbots. The Rosbot 2S models are bundled with the auto charging station. Auto Charge can also be purchased separately and easily deployed to pair with any compatible Rosbot, Mecabot, or Pickerbot.

Quick Start

ROS and Ubuntu images are pre-loaded on Rosbot which include all the essential ROS software packages and drivers. Our online tutorial will guide the user how to launch Rosbot and its ROS packages within minutes.

Complete Solution

Rosbot is a complete package for ROS learning and research projects bundled with all essential hardware components and ROS software.

Expandable

Rosbot is expandable to add accessories such as robotic arms, voice recognition modules, LCD screen and external keyboards etc.

Classroom Ready

Rosbot comes with comprehensive classroom materials including user manual, tutorials and sample ROS codes allowing educators to integrate Rosbot’s hardware and software package into their curriculum with ease and flexibility.

Applications

• Outdoor Autonomous Driving

• Autonomous mobile robot

• SLAM

• Navigation

• Mobile manipulation

• Multi robot system

• Human robot interaction

• Mobile computer vision

• Edge computing over 4G/5G

User Manual

Download User Manual
